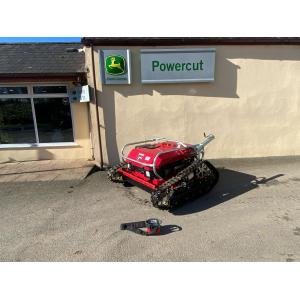

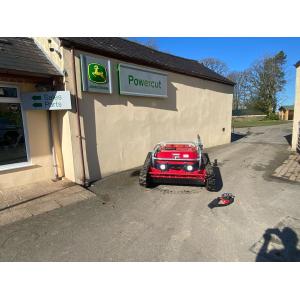

Ferris FRC7 Remote Controlled Mower Features
The Ferris FRC7 remote control allows the mower to be operated from a distance of up to 300m reducing the risk, physical effort, and exposure to vibration, noise, and emissions. The FRC7’s tracked low-gravity undercarriage ensures stability on steep inclines up to 55° and provides superior traction, whilst also allowing for forward and backward mowing, making turning on a slope unnecessary and preventing potential damage to the underlying soil.
The FRC7 has a 48V DC drive system that provides power to the blades and to the tracks and can operate over a distance of up to 200m on battery power alone and without having to start the engine. Both the tracks and mower deck are electrically driven by a hybrid e-drive system that combines a combustion engine with a battery drive system, resulting in a highly effective powertrain, and load sensing ability which keeps the mower deck performing optimally and automatically adjusts the mowing speed when conditions get tougher.
Remote Control
The Ferris FRC7 remote control allows the mower to be operated from a distance of up to 300m reducing the risk, physical effort, and exposure to vibration, noise, and emissions.
True Hybrid Drive System
The 48V DC drive system provides power to the blades and to the tracks. The FRC7 can drive up to 200 m on battery power only without having to start the engine.
Steep Incline Traction
The FRC7’s tracked low-gravity undercarriage ensures stability on steep inclines up to 55° and provides superior traction.
Large Cutting Width
The Ferris FRC7 has a 115cm cutting deck allowing cutting heights of 50mm to 180mm
Specification
| Model Number | 5902117 |
| Engine Brand | Vanguard® – Petrol |
| Model | MOD38E3 |
| Fuel system | Electronic fuel injection, Electronic throttle control |
| Engine power | 23.0 gross HP* / 17.2 kW |
| Cylinders / Displacement | 2 Cylinders V-Twin / 627cc |
| Cooling | Air-cooled |
| Starting system | Electric |
| Fuel capacity (litres) | 25 |
| MOWER | |
| Cutting width (cm/inch) | 115 / 45 |
| Deck configuration | Bi-directional, rear discharge, mulching |
| Cutting height (cm) | 5.0 – 18.0 |
| Deck lift system | Electric |
| Blades | 2 |
| Blade type | Cross-cut blade configuration with four swing-back blades per spindle |
| Drive system | Hybrid, e-Drive system with battery bank |
| Blade drive | Electric |
| Track drive | Electric |
| Speed-fwd. (km/h) | 0 – 7,0 |
| Speed-rev. (km/h) | 0 – 7,0 |
| Remote control reach (m) | 300 |
| Overall length (cm) | 160 |
| Overall width (cm) | 150 |
